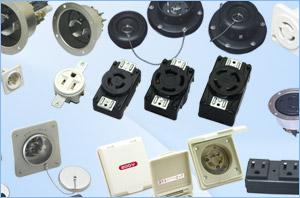

PANEL MOUNT DEVICE

PANEL MOUNT DEVICE

PANEL MOUNT DEVICE


Panel Receptacle
Panel Receptacle
Panel Receptacle is the contact device which is intended for flush embedded among an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
[Twist Locking / Straight Blade / Clamp Locking]
15A20A30A
Flanged Receptacle
Flanged Receptacle
Flanged Receptacle is the high capacitance contact device which is intended for flush mounting on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug
[Twist Locking]
60A100A

Panel Mount Outlet
Panel Mount Outlet
Panel Mount Outlet is the contact device which is intended for flush embedded among an appliance or equipment at the minimum size, and which is intended to establish electrical connection with an inserted plug.
[Twist Locking / Straight Blade / Clamp Locking]
15A
Panel Mount Duplex Outlet
Panel Mount Duplex Outlet
Panel Mount Duplex Outlet is the duplex contact device duplex receptacle which is intended for flush embedded among an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
[Twist Locking / Straight Blade / Clamp Locking]
15A

Waterproof Panel Receptacle
Waterproof Panel Receptacle
Waterproof Panel Receptacle is the high capacitance waterproof contact device having performance of IPX5 (International Protection Code) which is intended for flush installed an appliance or equipment, and which is intended to establish electrical connection with an inserted waterproof plug.
[Twist Locking]
60A100A
Flanged Inlet
Flanged Inlet
Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body.
[Twist Locking / Straight Blade]
15A20A30A60A100A

Waterproof Flanged Inlet
Waterproof Flanged Inlet
Waterproof Flanged Inlet is the device utilizing blades, having waterproof performance of IP44 (International Protection Code) when not in use, which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body. This device is primarily used for movable or cordless outdoor equipments.
[Twist Locking / Straight Blade]
15A20A30A
Waterproof Flanged Inlet (Dust & Jet Proof)
Waterproof Flanged Inlet (Dust & Jet Proof)
Waterproof Flanged Inlet (Dust & Jet Proof) is the device utilizing blades, having waterproof performance of IP65 (International Protection Code) in use, which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body protected by Waterproof Metallic Cover. This device is primarily used for movable or cordless outdoor equipments.
[Twist Locking / Straight Blade]
15A20A30A

Waterproof Flanged Inlet 60A
Waterproof Flanged Inlet 60A
Waterproof Flanged Inlet 60A is the device utilizing blades, having waterproof performance of IPX5 (International Protection Code) in use, which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted 60A waterproof connector body. This device is primarily used for movable or cordless outdoor equipments.
[Twist Locking]
60A
