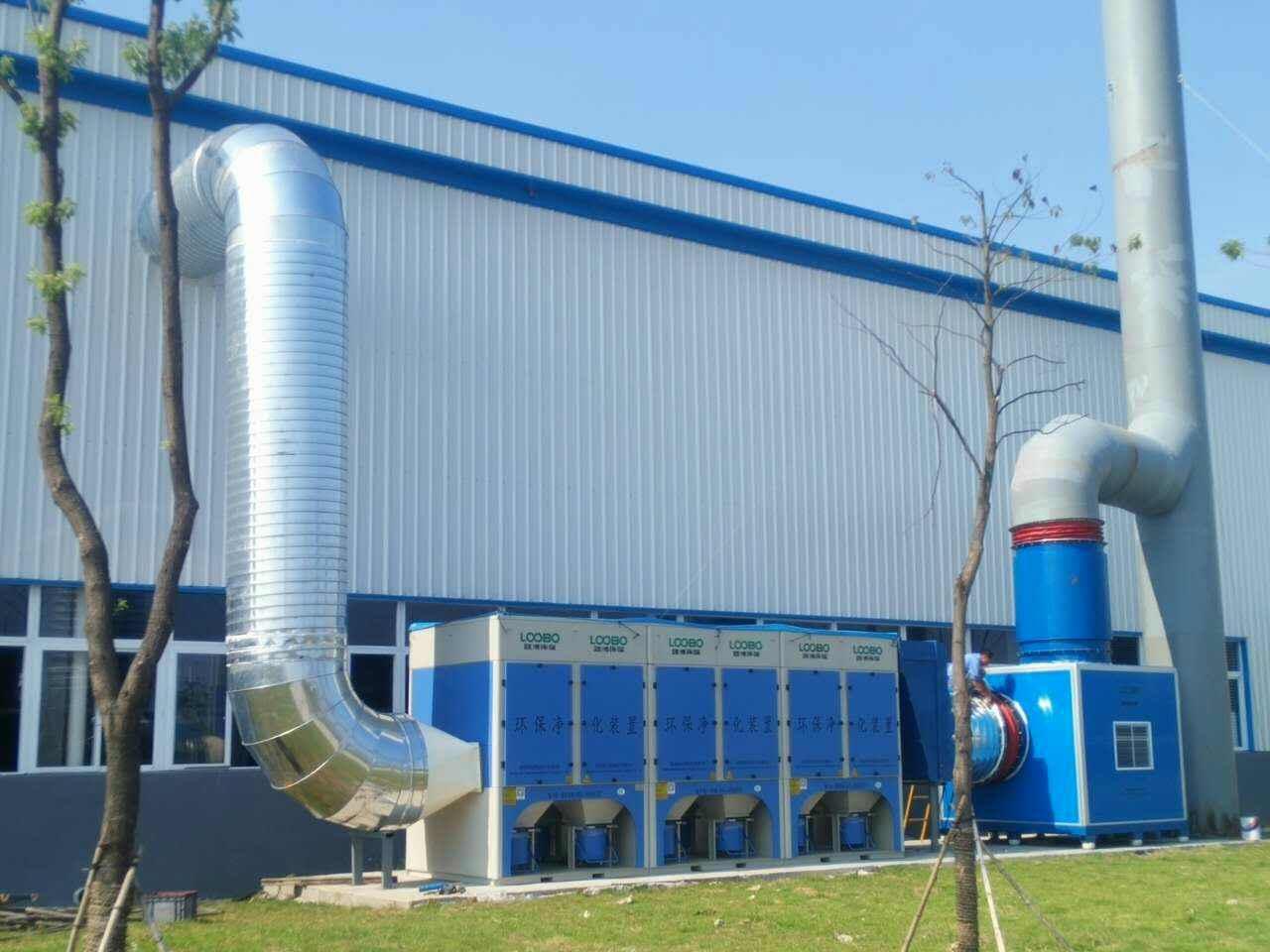

Industrial welding fume extractor and dust collector for multiple weldng station

LB-PC multi-cartridge dust removal equipment is a kind of efficient and energy conservation equipment, which is modularized and systematic produced combining with advanced technology power accoording to our conclusion of design and practical experience . It is widely used for dust purification in mechanical processing, chemical, construction, materials, pharmaceutical, electronics, wood processing industry, etc.
Facility principle:
Dust-laden air goes into dust collector from the top or the side import, the dust is "closured" by cartridge appearance and gathers together. The purified air is discharged out from the cartridge center, which achieve the purification purpose. In order to clean the cartridge, making use of compressed air (0.6-0.7Mpa) to produce a strong air current, which release into the cartridge center through the electromagnetic valve, and oscillate and blow down the dust accumulated on the external surface of cartridge as the vibration waves. The dust fall down in the ash bucket in the following. In order to ensure the cartridge works normally and continuously, dynamic change dust, the PLC control system blow conversely.
Features:
1.small volume, small footprint, saving space;
2.high efficiency of cleaning; Purification rate is more than 99% on the particles bigger than sub-micron.
3. using imported cartridge of the United States as main part with a long service life;
4.reasonable structure, easy for maintenance, low-cost; convenient for cartridge replacement without any tools;
5. Energy-saving, running resistance is 500-800pa, initial resistance is 200pa,and the maximum resistance is 1500pa.( according to the air pressure of fan)
6.inported PLC control adjustable pulse blowing conversely, equipped with import pressure indicator;
7. Series horizontal cartridge, a single seal to ensure the safety of equipment operation and easy for maintenance;
8. flexible box composite element can be installed to meet different site conditions;
9.a variety of cartridge material can be choiced for users, including high temperature resistant, anti-moisture, flame retardant and so on.

Technical Parameter:
Model Airflow(m³/h) Filter qty Valve type Body size(mm)
L H W dia
LB-PC-12 12000-15000 12 DMF-T-40 1960 2770 1362 550
LB-PC-16 16000-20000 16 DMF-T-40 1960 2770 1960 650
LB-PC-20 21000-25000 20 DMF-T-40 1960 2770 1960 700
LB-PC-24 24000-30000 24 DMF-T-40 3920 2770 1362 750
LB-PC-32 32000-40000 32 DMF-T-40 3920 2770 1960 850
LB-PC-40 41000-48000 40 DMF-T-40 3920 2770 1960 900
LB-PC-48 50000-57000 48 DMF-T-40 5880 2770 1960 1000
LB-PC-60 60000-70000 60 DMF-T-40 5880 2770 1960 1200
